• Introduction

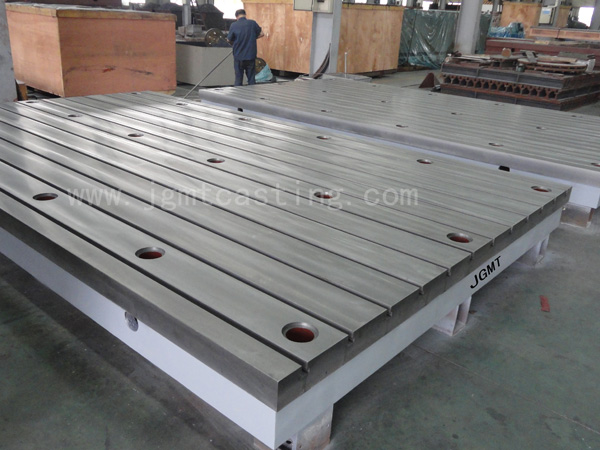

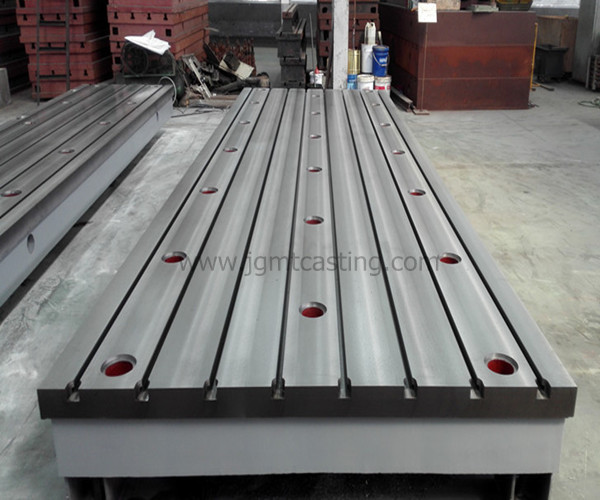

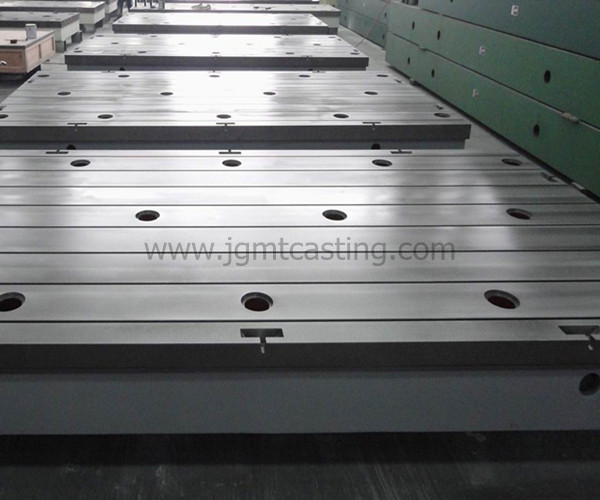

The Cast Iron Clamping Plates are mainly used as machining working surface of machine tools. Some holes and T-slots on the top surface of plates for fixing the work piece and clearing the scrap iron during the processing.

The raw material is the high-strength cast iron GG20-GG30 (HT200-HT300). The size range is from 100mm*100mm to 3000mm*8000mm. Larger one can be made according to the drawing.

The work surface can be processed V-shaped, T-shaped, U-groove as your request.


Standard sizes for reference:

No.

Sizes (mm)

Surface accuracy

(according to DIN876)

1

2000*2000*300

I/II/III

2

2500*2000*300

I/II/III

3

3000*2000*300

I/II/III

4

3500*2000*300

I/II/III

5

4000*2000*300

I/II/III

6

4500*2000*300

I/II/III

7

5000*2000*300

I/II/III

8

5500*2000*300

I/II/III

9

6000*2000*300

II/III

10

6500*2000*300

II/III

11

7000*2000*300

II/III

12

8000*2000*300

II/III

Other sizes and surface accuracy on request!



Large plates can be connected by single piece as following:

L(mm)

W(mm)





2000

2500

3000

3500

4000

3500

3500

2000

1250+1250

1500+1500

1500+2000

2000+2000

4500

4500

5500

5500

6500

6500

7500

7500

8500

4000+4500

9500

4000+5500

10500

4000+6500

11500

4000+7500

12500

4000+4000+4500

13500

4500+4500+4500

14500

4000+4000+6500

15500

4000+4000+7500

16500

4500+4500+7500

17500

5500+5500+6500

18500

5500+6500+6500

19500

6500+6500+6500

20500

6500+6500+7500
