• Introduction

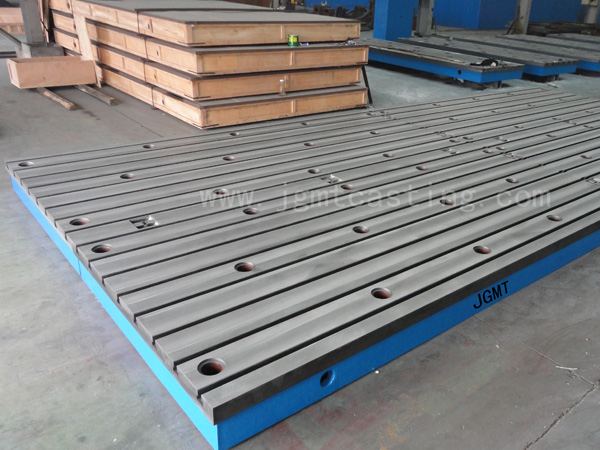

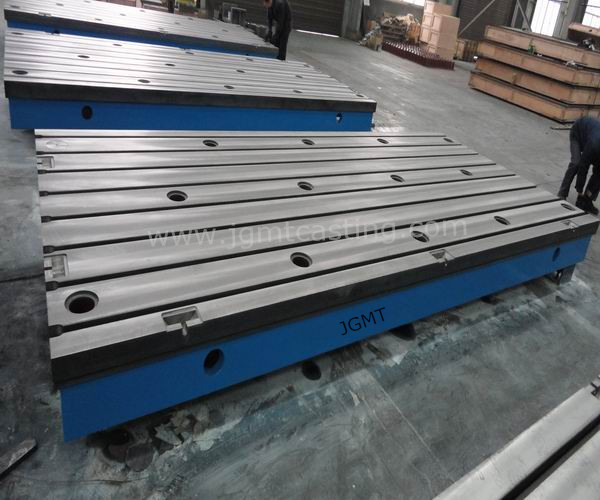

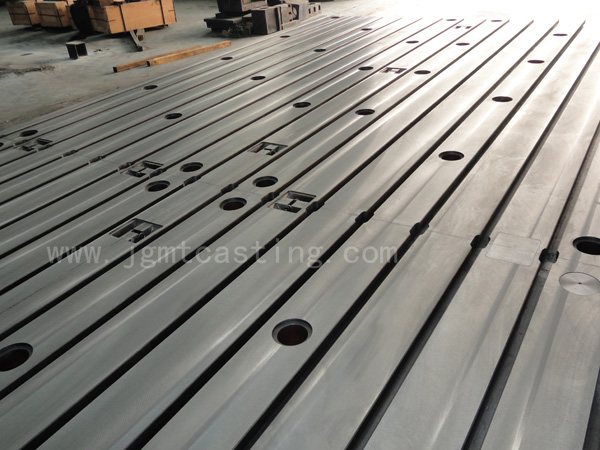

The Cast Iron T-slot Plates are industrial measuring tool mainly used to secure work piece. The workers utilize it for debugging, installing, and maintaining the equipment. This kind of product could be manufactured with precision grade 1, 2, 3 or fine machining.

Materials and processing
The raw material of the cast iron T-slot plates is the high-strength cast iron GG20-30(HT200-300). After two times annealing treatment, the cast iron surface plate has the features of steady precision and abrasion resistance.

Specification
The size range is from 100mm*100mm to 3000mm*8000mm. For the larger one, it can be used by the splicing method. In our factory, we also can make the special sized product according to your requirement.

Application
Motor assembly test, Vibration test, Rail locomotives installation, Ship fitting, etc.


Standard sizes for reference:

No.

Sizes (mm)

Surface accuracy

(according to DIN876)

1

2000*2000*300

I/II/III

2

2500*2000*300

I/II/III

3

3000*2000*300

I/II/III

4

3500*2000*300

I/II/III

5

4000*2000*300

I/II/III

6

4500*2000*300

I/II/III

7

5000*2000*300

I/II/III

8

5500*2000*300

I/II/III

9

6000*2000*300

II/III

10

6500*2000*300

II/III

11

7000*2000*300

II/III

12

8000*2000*300

II/III

Other sizes and surface accuracy on request!



Large plates can be connected by single piece as following:

L(mm)

W(mm)





2000

2500

3000

3500

4000

3500

3500

2000

1250+1250

1500+1500

1500+2000

2000+2000

4500

4500

5500

5500

6500

6500

7500

7500

8500

4000+4500

9500

4000+5500

10500

4000+6500

11500

4000+7500

12500

4000+4000+4500

13500

4500+4500+4500

14500

4000+4000+6500

15500

4000+4000+7500

16500

4500+4500+7500

17500

5500+5500+6500

18500

5500+6500+6500

19500

6500+6500+6500

20500

6500+6500+7500
