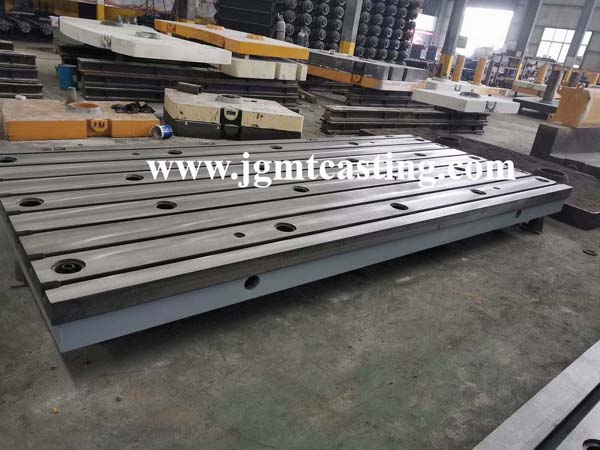

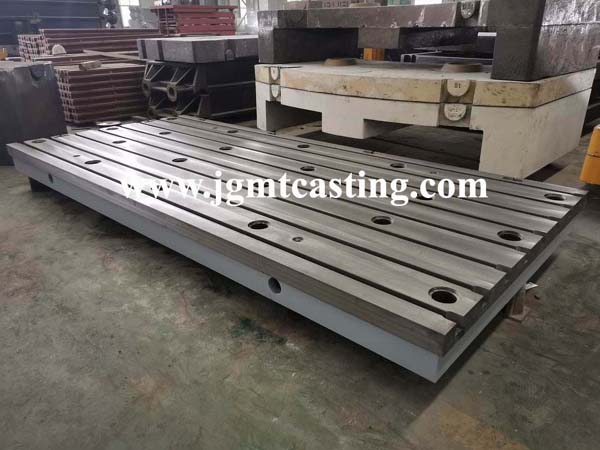

Cast Iron T-slotted Plates

Jinggong Cast Iron Plates and Tables are used in machinery, engineering, automotive industries as rigid bases for layout, marking, inspection, test, assembly work, large fixtures, special tooling and production set ups, also use as tables or beds for precision welding or for carrying out machining operations like drilling, boring, milling etc.



In addition, the plates and tables are suitable for large machines, transmission or other industrial equipments.



Jinggong Cast Iron T-slotted Plates are specially configured to suit customer requirements. The design, dimensions, and loading capacity of the plate can be tailored to suit the size and weight of the work pieces to be clamped.



The number and shape of the ribs can be adjusted to suit the specified loading requirements. The size of the T-slots in the plates is determined by the customer’s requirements in strength, tensile and compression.



The size range is from 100mm*100mm to 3000mm*8000mm. Larger one can be made according to the drawing.



Standard sizes for reference:

No.	Sizes (mm)	Surface accuracy (according to DIN876)
1	2000*2000*300	I/II/III
2	2500*2000*300	I/II/III
3	3000*2000*300	I/II/III
4	3500*2000*300	I/II/III
5	4000*2000*300	I/II/III
6	4500*2000*300	I/II/III
7	5000*2000*300	I/II/III
8	5500*2000*300	I/II/III
9	6000*2000*300	II/III
10	6500*2000*300	II/III
11	7000*2000*300	II/III
12	8000*2000*300	II/III

Other sizes and surface accuracy on request!

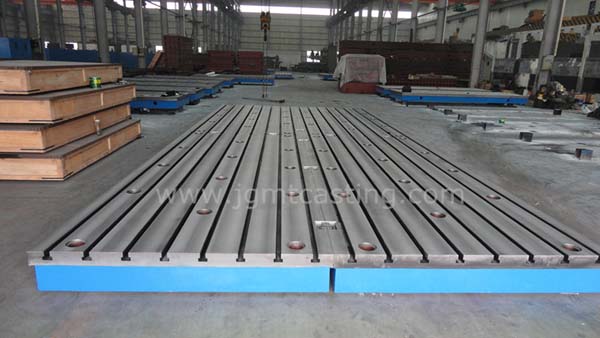

Large plates can be connected by single piece as following:

L(mm)		W(mm)
		2000	2500	3000	3500	4000
3500	3500	2000	1250+1250	1500+1500	1500+2000	2000+2000
4500	4500
5500	5500
6500	6500
7500	7500
8500	4000+4500
9500	4000+5500
10500	4000+6500
11500	4000+7500
12500	4000+4000+4500
13500	4500+4500+4500
14500	4000+4000+6500
15500	4000+4000+7500
16500	4500+4500+7500
17500	5500+5500+6500
18500	5500+6500+6500
19500	6500+6500+6500
20500	6500+6500+7500
