• Introduction

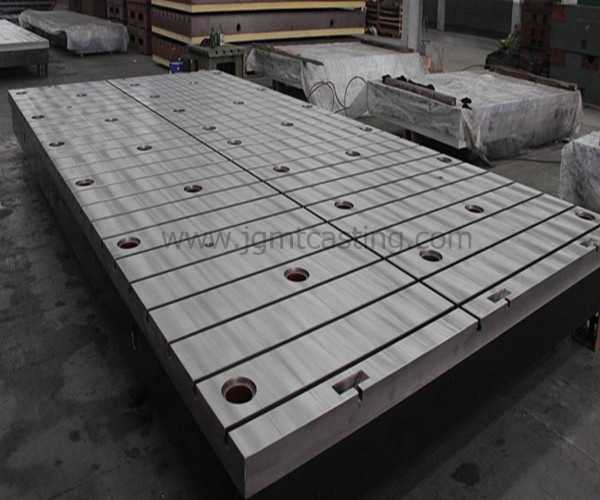

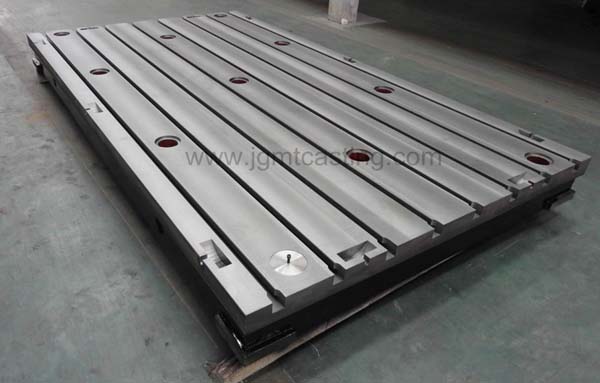

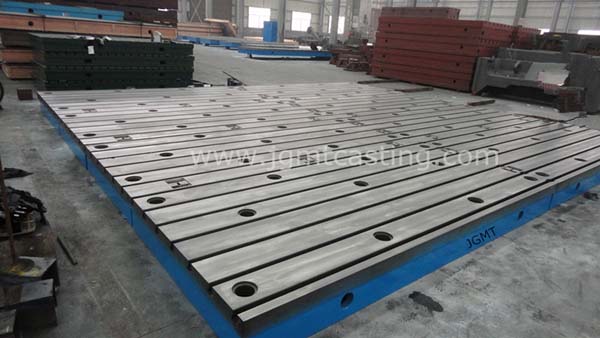

Jinggong Cast Iron Assembly Plates are used for installation,trial run for motive power machine and can be jointed together for bigger area in the work shop. The T-slots on the top surface may fix the machinery equipments.

The raw material of the plates is the high-strength cast iron GG20-GG30 (HT200-300).

The size range is from 100mm*100mm to 3000mm*8000mm. Larger one can be made according to the drawing.


Standard sizes for reference:

No.

Sizes (mm)

Surface accuracy

(according to DIN876)

1

2000*2000*300

I/II/III

2

2500*2000*300

I/II/III

3

3000*2000*300

I/II/III

4

3500*2000*300

I/II/III

5

4000*2000*300

I/II/III

6

4500*2000*300

I/II/III

7

5000*2000*300

I/II/III

8

5500*2000*300

I/II/III

9

6000*2000*300

II/III

10

6500*2000*300

II/III

11

7000*2000*300

II/III

12

8000*2000*300

II/III

Other sizes and surface accuracy on request!
