• Introduction

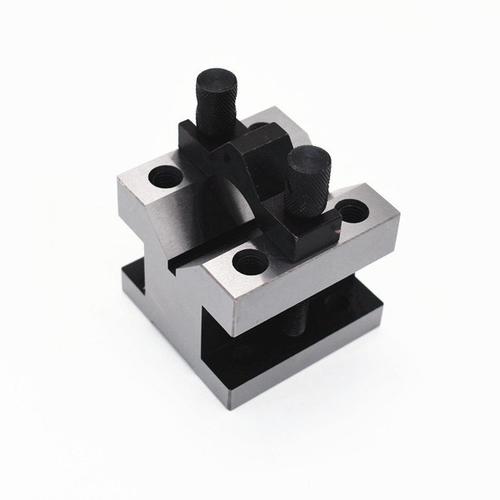

V-Block is widely used in marking accurate centres, checking concentricity, parallelism, etc. The parts are dimensioned to allow even heavy shafts to be placed without problems.

They are made from cast iron according to DIN876, stress relieved and annealed. All have 90°vees.

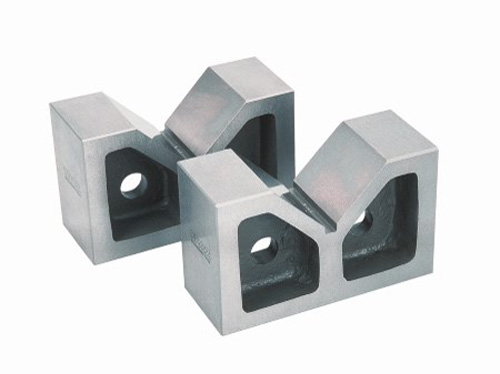

Type JGVB-A

●  Made from seasoned closed grained cast Iron.

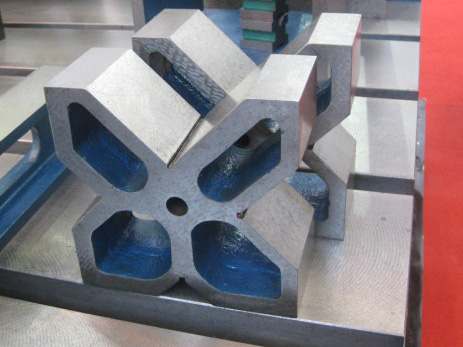

●  Universal V-Block consisting of four different size grooves.
●  Supplied in Pairs.

Technical Data (Standard):


No.
Length
Height
Thickness
Width of VEE

mm
inch
mm
inch
mm
inch
mm
inch
JGVB-A-01
95
3-3/4
70
2-3/4
35
1-3/8
20x30x 40x50
3/4x1-3/16x 1-9/16 x 2
JGVB-A-02
100
4
100
4
30
1-3/16
20x30x 40x50
3/4x1-3/16x 1-9/16x2
JGVB-A-03
120
4-3/4
120
4-3/4
35
1-3/8
30x40x 50x60
1-3/16x1-9/16x 2x2-3/8
JGVB-A-04
120
4-3/4
120
4-3/4
60
2-3/8
30x40x 50x60
1-3/16x1-9/16 x2x2-3/8
JGVB-A-05
150
6
150
6
75
3
40x50x 60x70
1-9/16x2x2-3/8x 2-3/4
JGVB-A-06
200
8
200
8
100
4
60x70x80x100
2-3/8x2-3/4x 3-5/32x4

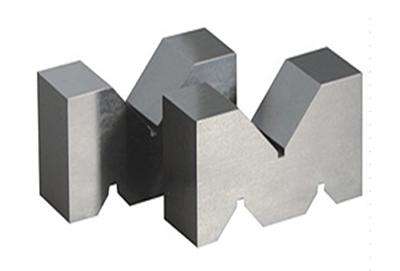

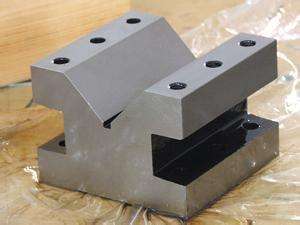

Type JGVB-B

●  Blocks are precisely ground and machined square and parallel.
●  Vee’s are 90° centred.
●  Manufactured and supplied in numbered pairs.
●  Handy for holding large jobs where clamping is not necessary.

Technical Data (Standard):


Sizes
Flatness of
Working
Surface
Parallelism
Between the V Groove and
Bottom Surface
Parallelism Between
the V Groove and
Side Face
Degree of Symmetry
Between V Groove
and Two Side Faces
Verticality between
the V Groove and
End Face
mm
inch
Precision Grade (μm)


0
1
2
0
1
2
0
1
2
0
1
2
0
1
2
100x100x80
4x4x3

3
5

15
25

15
25

30
50



150x150x80
6x6x3

4.5
6.5

15
25

15
25

30
50



200x200x90
8x8x3.5

5
8

20
30

20
30

40
60



300x300x120
12x12x5

10
12

30
40
