Jinggong Cast Iron Angle Plates with a box-shaped cast design are required for almost all boring and milling machines to fix workpieces in a vertical position. Have clamping slots and drill-holes adjusted to the clamping options of the machine table.

Dimensions and T-slots sizes can be varied according to your requirements. The large and heavy angle plates can also be supplied in several sections. These can then be arranged in either a vertical or horizontal row to obtain the highest or widest possible clamping surface.

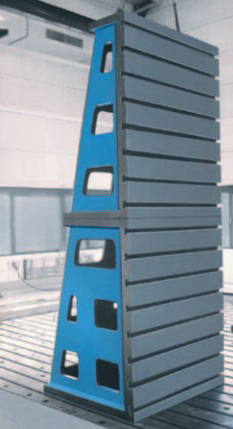

Type B: Stacked Angle Plates


Material: grey cast iron GG25 (HT-250);
Surface DIN876/III, DIN876/II machined;
Clamping surface with T-slots according to DIN650;
Can be made in a single piece or in two sections;
Highly customized and specifically designed as per loading condition;

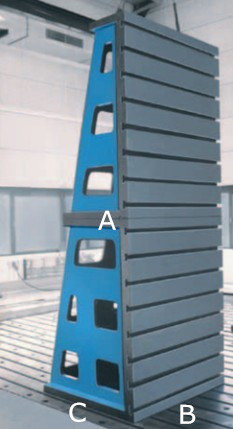

Dimension available:

A
B
C
mm
inch
mm
inch
mm
inch
1524
60
1676
66
1220
48
3048
120
1676
66
2896
114
1220
48
1830
72
4270
168
1500
59
1200
47
3000
118
1300
51
2000
79
5000
196
1100
43
700
28
2200
87
Other sizes can be offered on request.
