Introduction of cast iron measuring platform
2021-09-18 16:02:58

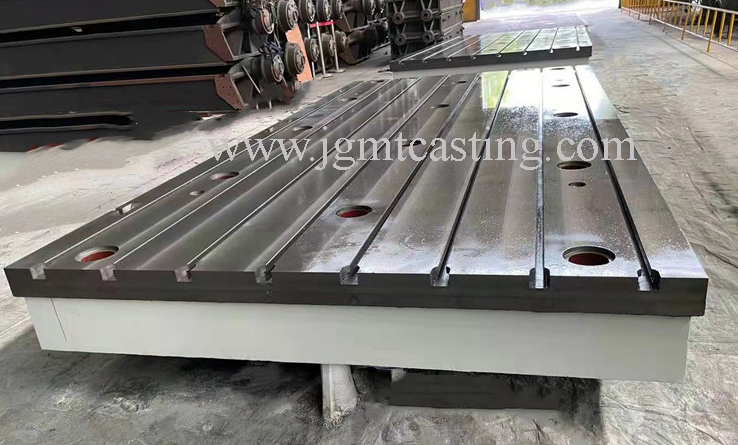

The cast iron measuring platform is used for power experiments of machinery and engines, equipment debugging, and has good plane stability and toughness. The surface has a T-shaped groove, which can be used to fix the experimental equipment.





cast iron measuring platform



The hardness of the working surface is HB170-240. After two manual treatments (artificial annealing 600°-700° and natural aging for 2-3 years), the accuracy of the product is stable and the performance is good.



Specifications: 100*100—3000*6000, (Assembly platforms larger than this specification can be assembled and used or customized according to drawings.)



Accuracy: According to the standard metrological verification procedures, the four levels are 0, 1, 2, and 3.



The material of the cast iron measuring platform: it can be divided into two types: ductile iron and gray iron. The use of nodular iron measurement platforms is relatively small, and they are generally used in measurement platforms with smaller specifications and higher accuracy requirements.



The flatness inspection of the measuring plate has a different concept from the previous standard. In use, the contact point of the measuring platform is no longer blindly pursued, and the side can be placed on the flatness in general use. As the current workpiece and measurement platform specifications continue to increase, the requirements of the workpiece on the measurement platform are also changing. The number of contact points of the measurement platform has a great relationship with the processing cost of the measurement platform. Therefore, wise users no longer deliberately ask to measure platform touch points.



The technical parameters of the cast iron measuring platform mainly include: the bearing of the measuring platform, the length, width and height of the measuring platform, the surface accuracy of the measuring plate, the weight of the measuring platform, the material requirements of the measuring platform, and so on.



When using the cast iron measuring platform, it is necessary to install and debug well, and always keep the working surface clean. During use, pay attention to the working surface of the measured workpiece and the measuring platform not to have a strong collision, and the weight of the workpiece can not exceed the measuring platform. The rated load may damage the working surface of the measurement platform, or even cause deformation, damage it and make it unusable.



When buying a cast iron measuring platform (measuring flat panel), we need to purchase some accessories for the measuring platform, such as: brackets to support the measuring platform, bolts to fix the measuring platform, fixtures on the measuring flat plate during work, etc., to make a selection of matching accessories, use accessories It can be used well together and can work normally. Of course, if the matching is good, it will be easier to extend their service life!
