The T-slots platform is often very prone to errors in the T-slot planed by the platform due to operating errors. The following four are the main reasons.

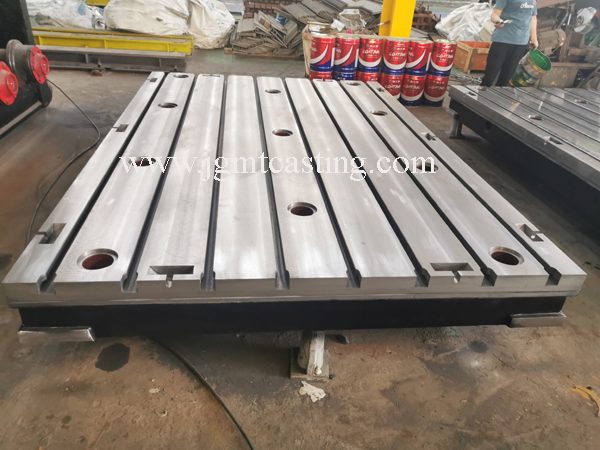

cast iron T-slots platform



1. The groove of the T-slots platform is not parallel to the side of the platform working surface. The main reason is that the cast iron platform is not aligned according to the markings during installation, or the cast iron platform is displaced during processing.



2. The top surfaces of the left and right grooves of the T-slot are not on the same plane. The reason is that the machine tool setting is not accurate. The width of the main cutting edge of the left and right variable cutters is not the same when the groove is processed in one pass.



3. The width of the left and right grooves of the T-slot platform is different. The main reason is that the slot direction is not well mastered.



4. There is a shallow groove in the middle of the T-slots bottom surface of the T-slots platform. The reason is that the tool is not well connected when processing the bottom surface of the groove, or the planing is too deep when processing the right-angle groove.
