The Role Of The Verification Platform
2022-03-11 15:57:33

The calibration platform is a platform produced with high flatness. The flatness can be divided into 0, 1, 2, and 3 grades according to the standards of the mechanical department. Different precisions are selected according to the degree of inspection work. There are four specific uses of the platform:



1. The datum plane of angle measurement: Using the flat plate as the datum plane, with the sine rod and angle gauge, the angle measurement can be carried out.



2. The reference plane for parallelism measurement: fix the gauge seat, then make the gauge pointer touch the surface of the object to be measured, move the object to be measured, and check the parallelism between the workpiece surface and the flat surface.



3. The datum surface for height measurement: place the object to be measured and the gauge base on the platform to compare and measure the height, and then compare its height with the standard block gauge.



4. The datum plane of the line: It can be connected to the size of the work drawing to carry out the line work.



The calibration platform is a reference working plane for precision measurement and calibration, and is used in conjunction with tools such as flat ruler, square box, V-frame (iron), bent plate, square ruler, and cylindrical square. It is suitable for various inspection work and the reference plane for precision measurement; it is suitable for the inspection and correction of various machine tool mechanical products; it is an indispensable basic tool in machinery manufacturing to verify the dimensional accuracy or behavior deviation of precision parts.

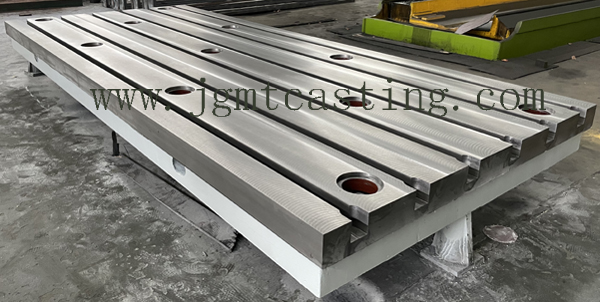

cast iron calibration platform
