The difference between cast iron box tables and magnetic box tables
2021-07-05 17:50:44

Cast iron box material: high strength HT200

The purpose of the cast iron box tables: the cast iron box table is used for the measurement and inspection of the parallelism and perpendicularity of the three-dimensional marking of the fitter and the mechanical parts.

The structure of the cast iron box tables: The cast iron box is a cube made of gray iron.

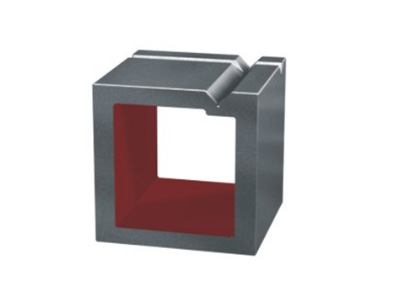

 cast iron box table



The magnetic box table has its own advantages: the square box body and the V-shaped groove are equipped with magnetic force, which can stabilize the square box and detect the workpiece, which is very convenient to use.

The magnetic box table is used for inspection and marking of parallelism and perpendicularity of parts.

There is magnetic force on the upper surface, both sides and the V-shaped surface. The V-shaped surface solves the measurement of irregular workpieces.

The magnetic box table is manufactured finely. Both sides of the V-shaped surface have the same angle. The working surfaces of the v-shaped groove and the square box are parallel to each other. The sides of the box and the upper and lower working surfaces are perpendicular to each other. The measuring diameter of the V-shaped surface is within Φ20mm, which is convenient for operation.

The size of the magnetic box table is 100×100×100-300×300×300.

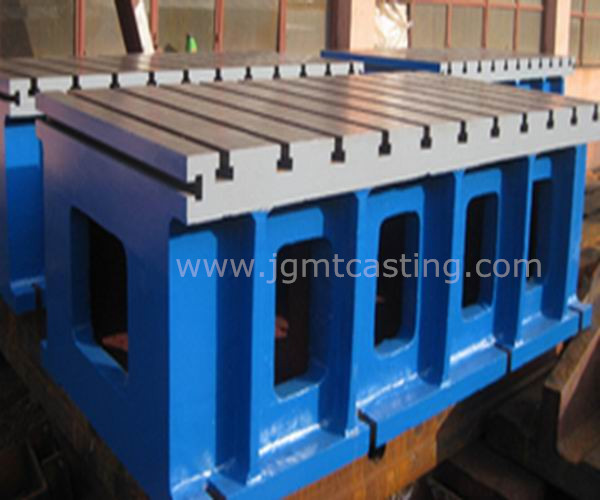

The magnetic box table
